How much do you know about the daily maintenance knowledge of radial drilling machine in china?
2021-08-19

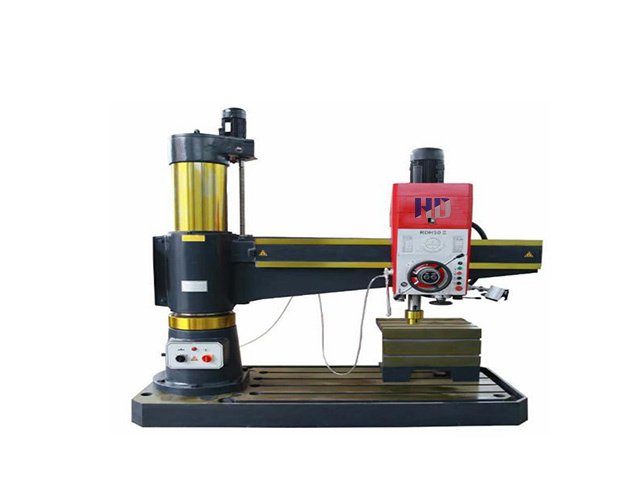

The radial drilling machine in china is a drilling machine in which the rocker arm can rotate and lift around the column, and the headstock is usually moved horizontally on the rocker arm. When machining holes on a vertical drilling machine, the centering of the tool and the workpiece is realized by the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; while the radial drilling machine in china can use the moving tool axis The position is centered, which brings great convenience to the processing of holes on large and heavy workpieces in single and small batch production. Let's take a look at how to carry out daily maintenance of the radial drilling machine in china!
1. Clean the exterior and dead corners of the machine tool, dismantle and wash the covers, and require clean inside and outside, no rust, no yellow robe, the paint sees the original color and the iron is bright. Clean the guide rail surface and remove the burrs on the worktable surface. Check the complement of screws, handball, and hand plate, and check the flexibility and reliability of each handle.
2. Radial drilling machine in china spindle feed box maintenance: check the oil quality, keep it in good condition, and the oil quantity meets the requirements. Remove the burrs on the spindle taper hole. Clean the hydraulic transmission system, the oil filter, and adjust the oil pressure.
3. Radial drilling machine in china rocker arm and lifting clamping mechanism inspection: check and adjust the lifting mechanism and clamping mechanism to be sensitive and reliable.
4. Radial drilling machine in china lubrication system inspection: cleaning the linoleum requires a complete oil cup, an unobstructed oil path, and a bright oil window.
5. Radial drilling machine in china cooling system inspection: cleaning the cooling pump, filter and cooling liquid tank. Check the coolant pipeline to ensure that there is no water leakage.
6. Radial drilling machine in china electrical system inspection: clean the dust inside and outside the motor and electrical box. Turn off the power, open the appliance door, and check whether the electrical connectors and electrical components are loose or aging. Check whether the limit switch is working properly. Does the power off when opening the door work? Check whether the hydraulic system is normal and whether there is oil leakage. Whether the control switch of each electrical appliance is normal.
7. Check the oil quality and keep it in good condition, and the oil quantity meets the requirements.
8. Remove the burr of the spindle taper hole.
9. Clean the hydraulic transmission system, the oil filter, and adjust the oil pressure.
10. Remove impurities on the main shaft and fill the main shaft with oil to ensure the main shaft lubrication.
The above is a brief introduction to the daily maintenance knowledge of the radial drilling machine in china.
